AIRSTEP

















From Now On, You Only Need One Controller

















AIRSTEP

Smart Multi Controller



















What is AIRSTEP?

AIRSTEP is an unprecedented foot controller, which can control almost all music-related devices and software around you.

AIRSTEP can control all devices with the MIDI interface. It can also control devices with a footswitch(TRS) interface, like some pedals and amps without the MIDI interface.

AIRSTEP can wirelessly control software on mobile phones, tablets, and computers via Bluetooth MIDI and HID. Like effect software, Plugin, DAW, etc. It can even control the play/pause, backward and forward of YouTube guitar lessons, page-turning of the music score, completely freeing your hands!

AIRSTEP has 5 footswitches, and can wirelessly expand 5 more footswitches by AIRSTEP Lite. It is capable of sending up to 8 different messages per switch.

All functions can be easily set by the AIRSTEP APP. Programming and editing isn't your thing? Just load any of the massive online presets with just one click, truly plug and play!

AIRSTEP is powered by a built-in rechargeable battery, no external power supply is required. Its compact footprint and sturdy metal casing are built to meet the most stringent environments faced by musicians.

Comprehensive MIDI Functions

AIRSTEP has a comprehensive and powerful MIDI control function. From 2 5-Pin MIDI interfaces to USB and Bluetooth MIDI interface, It can control all things related to MIDI, whether it's hardware or software. It can be placed everywhere you want, to rule your home studio and live gig, with its compact size to put in your guitar bag or backpack.

AIRSTEP can send all types of MIDI messages: Control Change, Program Change, Note On/Off, SysEx, System Real-Time, etc. It can send up to 8 different MIDI messages with just one press, or release, or long-press. All of the messages can be easily edited by the AIRSTEP APP. You can edit and save your own presets, there is no limitation of the preset amount in the APP. When you need to use them, just one click to load and enjoy! Moreover, massive online factory presets have been built into the APP and will be kept updating. So, if you don't want to program the MIDI, you can also find most of your needs in these online factory presets.

AIRSTEP also has a powerful MIDI forwarding function. It has a 5-Pin MIDI input interface, also Bluetooth, and USB MIDI inputs. All MIDI input messages can be forwarded to any MIDI output interfaces. This means if you plug in your traditional MIDI controller to AIRSTEP's 5-Pin or USB MIDI input, it can forward to Bluetooth output. Therefore, AIRSTEP could "cable-free" your traditional MIDI controllers. AIRSTEP can also forward MIDI messages from your computer or mobile phone to your hardware effect to switch presets, then you can use your DAW automation to wirelessly control your hardware effects.

Be Your Computer Keyboard

AIRSTEP can send HID messages to mobile phones, tablets, and computers. HID messages are messages sent by the computer keyboard, so you can use it as a wireless keyboard placed on the floor. You can assign any key of the keyboard to AIRSTEP's footswitches.

When you are playing guitar while watching YouTube lessons, music scores, covering songs, or recording with DAW, you always have to stop and use your hands to click the keyboard or screen. Now, free your hands with AIRSTEP! You can also use it to control the phone's video or camera functions. What if you don't have enough hands when you playing a game? With AIRSTEP, use your feet!

What a keyboard can do, AIRSTEP can do it all. Also, up to 8 different HID messages can be sent by one press, or release, or long-press.

Traditional Footswitch

AIRSTEP can be used as a traditional footswitch to control amps or pedals with the footswitch(TRS) control input. AIRSTEP supports both momentary and latching type, and two TRS outputs mean AIRSTEP can control up to 4 amps or pedals with a footswitch(TRS) control input.

Therefore, it can be used as a powerful traditional footswitch to switch amp channels, toggle function of pedals, tap tempo, even control the sustain function of keyboard instruments.

These functions are fully programmable by AIRSTEP APP. You can map them freely, together with up to 8 messages sending feature. It can switch the channel of your amp by FS control and toggle pedals with MIDI control at the same time!

5 Footswitches And 5 Wireless Footswitches

AIRSTEP has 5 footswitches, each footswitch can send up to 8 different messages to the specified output interfaces at the same time, and the output message type can be any combination of MIDI, HID, and traditional footswitch messages.

AIRSTEP has 3 trigger actions of footswitch: press, release, and long press. Each trigger can be assigned different message outputs. You can short press the footswitch to toggle the delay, long-press the same footswitch to change presets, or you can press and hold to enable the boost, and release to disable it. Footswitches can also be set as toggle mode. In toggle mode, the first trigger and the second trigger send different messages. All these parameters can be easily edited and saved by the AIRSTEP APP.

If 5 footswitches are not enough for you, you can pair AIRSTEP with AIRSTEP Lite wirelessly, then AIRSTEP + AIRSTEP Lite = 10 footswitches = AIRSTEP Combo. In Combo Mode, AIRSTEP Lite works as the extension footswitches of AIRSTEP, and the extended 5 footswitches have the same functionality as AIRSTEP. Because they are wirelessly paired, AIRSTEP Lite can wirelessly control all devices connected to AIRSTEP!

AIRSTEP Lite

AIRSTEP Lite is the simplified version of AIRSTEP, it has removed all hardware control interfaces and only kept the Bluetooth to send MIDI and HID messages. This means that Lite can only connect to mobile phones, tablets, and computers to control software, but cannot control hardware devices. In addition to this, the other functions of Lite are the same as AIRSTEP.

However, Lite can not only be used independently but can also be used as AIRSTEP's wireless extension footswitches. Lite can wirelessly control all wired devices connected to AIRSTEP. So you can own both AIRSTEP and AIRSTEP Lite without worrying about the duplication of functions.

APP Editor

All the parameters on AIRSTEP are edited by mobile APP via Bluetooth, which is the most ultimate intuitive and convenient way for editing. APP shows the working status such as footswitch function, preset position, battery status, etc, and all parameters can be saved as presets. There is no limitation of the preset amount in the APP.

It doesn't matter if you don't want to program, the APP provides massive online presets, which can already control most of your devices and software. If you want a more flexible control function, APP also provides a highly customizable setting interface to meet your most demanding needs. AIRSTEP can store 5 most commonly used presets locally, which can be used when not connected to the APP.

Search AIRSTEP in the APP Store or Google Play to explore it!







USB HOST

USB HOST is a unique function of AIRSTEP. In this mode, AIRSTEP's USB interface is equivalent to the USB on the computer. It means that you can plug-in devices that can be controlled by the computer. Many hardware effects only have a USB port, which is only controlled by a computer, like the ZOOM MS Series, now you can use AIRSTEP to extend more footswitches for them. You can also plug in your USB MIDI controller to AIRSTEP, it will power the controller directly, and forward MIDI messages to Bluetooth, then, your controller becomes wireless.

MIDI Trigger

MIDI trigger is another advanced function of AIRSTEP. All the MIDI input of AIRSTEP including 5-Pin, USB, Bluetooth can receive up to 8 specific MIDI messages, which are triggered when these specific messages are received. The MIDI trigger can realize the same message output functionality as the footswitch of AIRSTEP, it can send up to 8 different assignable MIDI, HID, and footswitch out messages when triggered. For example, you can connect a traditional MIDI pedal to AIRSTEP and turn it into a wireless computer keyboard to send HID messages. This allows you can use your traditional MIDI pedal to extend the footswitch of AIRSTEP.

Connect All Your Devices








Features

Send all types of MIDI messages via 5-Pin, USB, Bluetooth output

Send all types of HID messages via Bluetooth

Send footswitch actions to devices with the footswitch control input

Send up to 8 different messages with one trigger

Press, release, long-press trigger actions of the footswitch

Toggle mode of the footswitch and LED indicator

5 footswitches and 5 wireless extension footswitches (with AIRSTEP Lite)

AIRSTEP Lite for Bluetooth MIDI and HID control

2 expression pedal input, support both TRS and RTS type

Intuitive mobile APP editor and status indicator

Unique USB HOST mode

Unique MIDI trigger technology

All MIDI in can thru to all MIDI out

30 meters (100') wireless communication range

300 hours of wireless freedom between charges

Firmware can be upgraded via mobile phone

Robust aluminum extruded shell

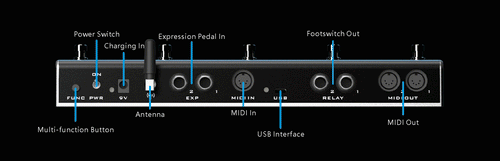

Various Interface









Reviews



More Videos





Specification

MIDI Out:

MIDI In:

● Bluetooth MIDI out

● Bluetooth MIDI in

● USB host MIDI out with 5V power out

● USB host MIDI in with 5V power out

● USB device MIDI out

● USB device MIDI in

● 5-Pin MIDI out x 2

● 5-Pin MIDI in

● Send all kinds MIDI messages

● MIDI in can through to all MIDI out

● MIDI in with CC and PC, can trigger to all message types

HID Out:

Footswitch Out:

● Bluetooth HID out

● Footswitch out x 4 on 2 ¼" TRS jacks

● Send all kinds HID messages of keyboard

● Momentary and latching action support

Expression Pedal In:

LED Indicator:

● Expression pedal in x 2

● System LED x 1

● Support all expression pedal types

● Individual footswitch LED x 5

● Send MIDI CC messages to all MIDI out

● Blue and Green

● Normal and toggle mode

AIRSTEP Lite:

Footswitches:

● No 5-Pin MIDI interface

● Footswitches x 5

● No footswitch out

● Footswitch action assignable to press, release and long-press

● No USB

● No expression pedal input

● Only has Bluetooth MIDI and HID out

● Can be used as a wireless extension footswitch for AIRSTEP

Message Send:

APP Editor:

● Message can be triggered by footswitches, MIDI in and expression pedal

● Each MIDI trigger and footswitch message can be flexibly edited by APP

● Message type: MIDI, HID, Footswitch, Device

● Connect to AIRSTEP by Bluetooth

● Send up to 8 messages in one trigger

● iOS and Android support

● Each message can assign different physical output interfaces

● All editable data can be saved as presets

● Normal and toggle message mode

● Unlimited number of presets can be saved and loaded into AIRSTEP

● XSONIC library of presets for all your favorite devices

AIRSTEP Local Preset:

Battery Power Supply:

● Up to 5 presets can be stored in AIRSTEP locally

● AIRSTEP is battery powered and rechargeable by 5V - 9V DC

● Local preset can be switched by all triggers, FUNC button, and APP

● 300 hours of continuous use

● Local presets can work without APP

Firmware:

Wireless Communication Distance:

● Firmware can be updated by Bluetooth and USB

● 30m (100') line of sight(LOS), between AIRSTEP and phone, tablet, computer

● 30m (100') line of sight(LOS), between AIRSTEP and AIRSTEP Lite

Bluetooth Communication Latency:

Appearance:

● 10ms, between AIRSTEP and AIRSTEP Lite

● Robust aluminum extruded shell

● 20ms, between AIRSTEP and smart devices

● Rotatable and detachable external antenna

● 300 x 70 x 45(H) mm

● AIRSTEP 700g | AIRSTEP Lite 650g
