XTONE Duo

Guitar&Mic Smart Audio Interface

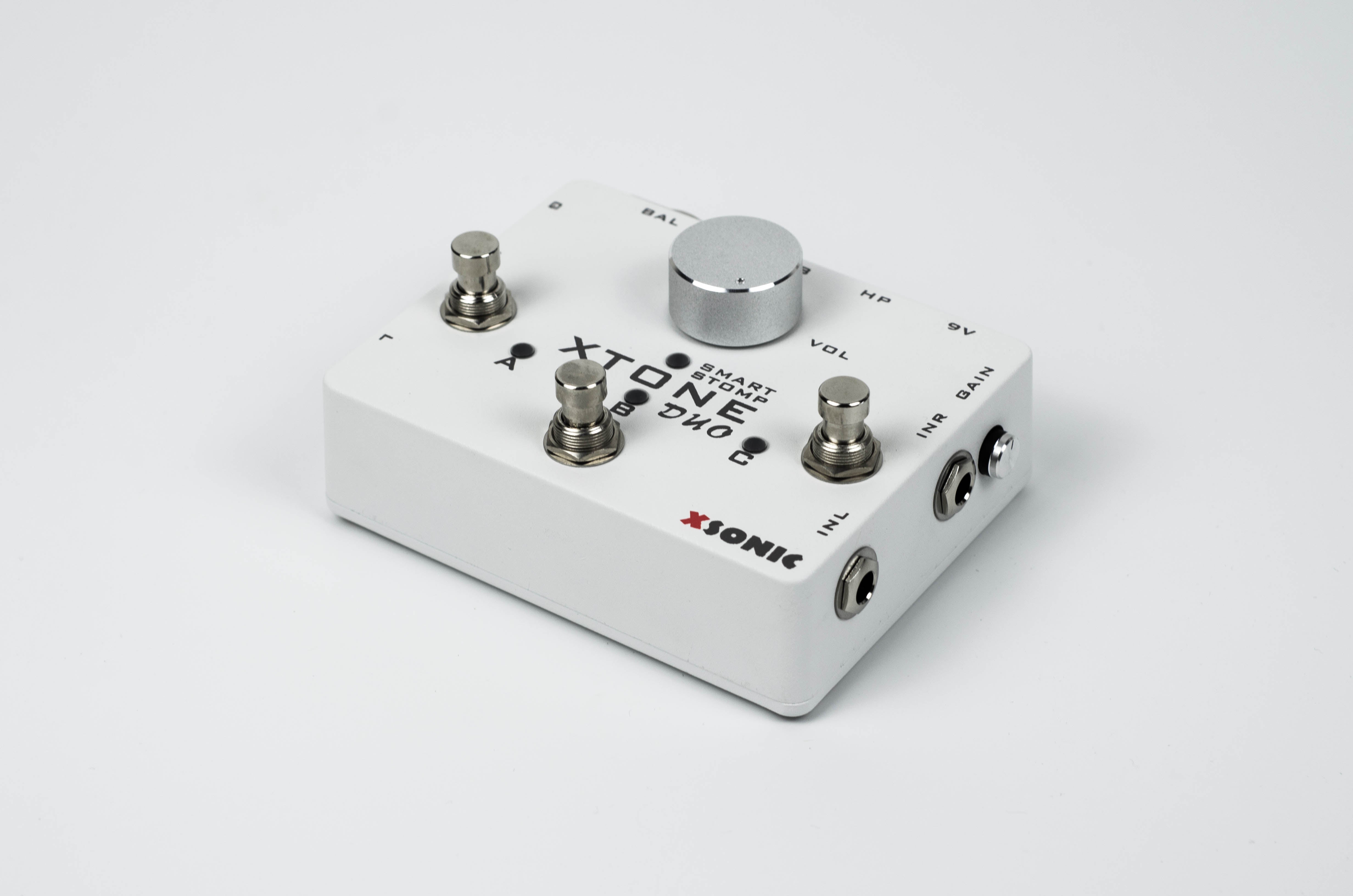

What is XTONE Duo ?

XTONE Duo is a derivative of XTONE with a white shell that has the same features and performance as XTONE.The only difference is that Duo replaces the original expression pedal interface with a microphone input.

This means that the XTONE Duo has two audio input channels, one for guitar (left channel, INL) and one for microphone (right channel, INR).At the same time, the microphone input channel has a gain adjustment knob of up to 50dB and 48v phantom power. And you can sing and play at the same time.In addition to this, XTONE Duo and XTONE are exactly the same in terms of function and audio quality, there is no difference. For more details, please refer to XTONE.





Features

Best audio quality

 192KHz Ultra-HD audio

 Low latency and high dynamic range

 Microphone Preamp & 48v Phantom Power

 Two input channels &  Foot Switch

 Include the redeem code of unlocking BIAS FX Essential pack

 Support guitar, bass, keyboard, Microphone

 Direct power supply by your phone

 Support iOS, Windows, Mac, Android

 Can be used as a HIFI player

 Can upgrade firmware via USB

 Ultralight

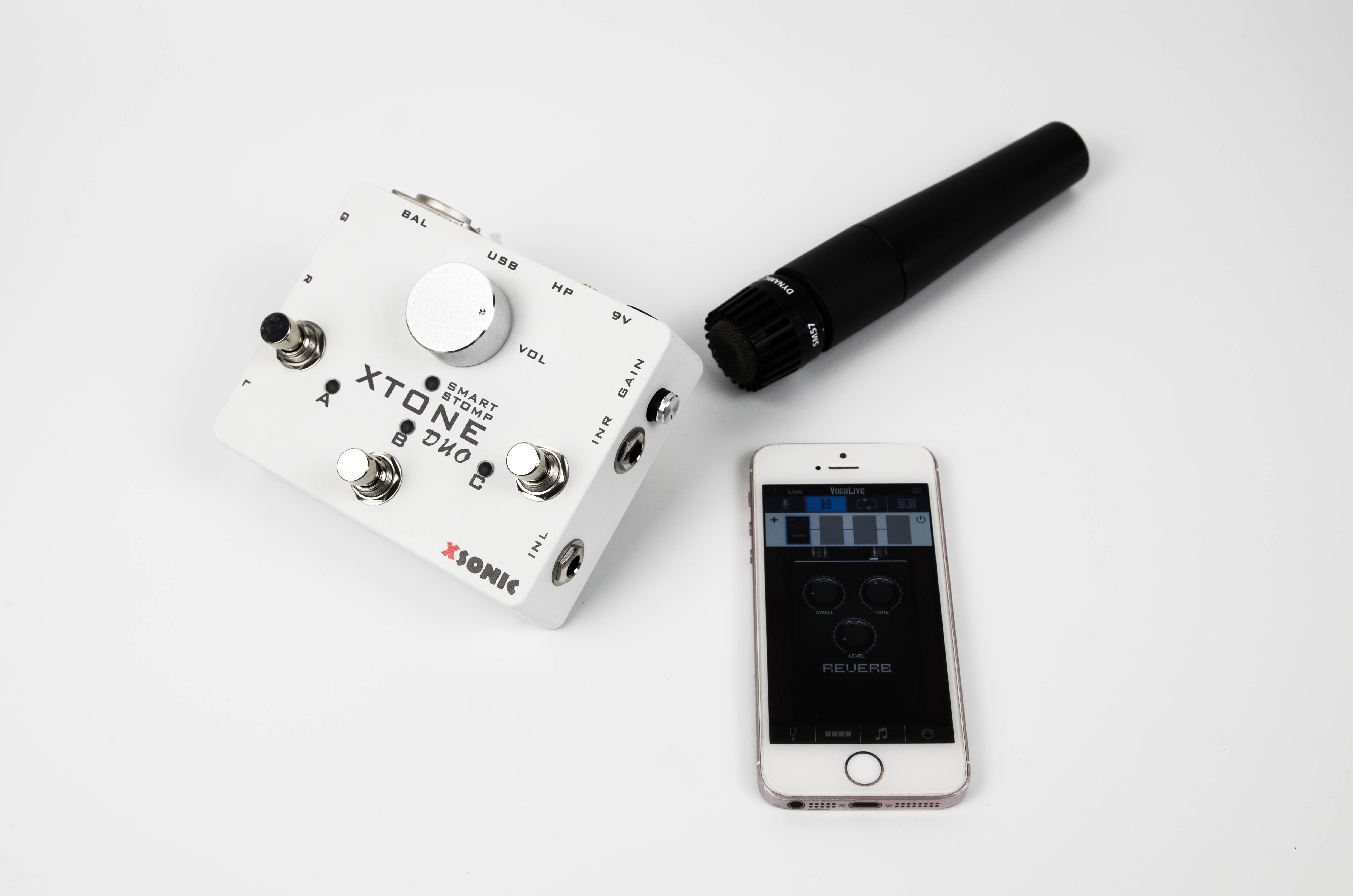

How To Use Guitar And Microphone At The Same Time

If you want to use the microphone effect software while using the guitar effect software (singing and playing at the same time), you need to make the following software settings:

1) Open the guitar effects software (such as JamUp), set it to run in the background mode, and set the audio input channel to Left.

2) Open the microphone effect software (such as BIAS FX), set it to run in the background mode, and set the audio input channel to Right.

3) Add some FX, and adjust the volume balance of the two softwares, then you can singing and playing at the same time.





Effects Software For Microphone

There is also a lot of effect software for vocal microphone on smart device, such as VocaLive, JamUp, BIAS.
Among them, JamUp and BIAS can be used for microphone because they have built-in speaker simulation of vocal microphone, and add some reverb, chorus and delay, you can get a great sound.


From now on, a redeem code card will be included in the packing box of the XTONE for free. This redeem code worth $20 is used to unlock BIAS FX Essential pack (iOS only).

* The redeem code that comes with your purchase of XTONE Duo at Thomann is JAMUP.



Specifications

Input impedance:1M ohms(INL), 100K ohms(INR)

THD+N:0.001%

Unbalanced output impedance:100 ohms

USB Power input:5V DC

Balanced output impedance:200 ohms

9V Power input:9V DC

Frequency response:10Hz ~ 21kHz

Power consumption:100mA

Sampling Rate:44.1k-192kHz

Dimensions:129mm(D) x 98(W) x 54mm(H)

Sampling depth:24bit

Weight:355g

Dynamic Range:108dB





Compatible Device

iOS:iOS 10 and above

Mac:OS X 10.6 and above

Android:Supports devices with Samsung Professional Audio technology such as Samsung Galaxy S6, Galaxy S6 Edge, Galaxy Note 4, Galaxy Note Edge, Galaxy S5, Galaxy Note 3, Galaxy Tab S2, and other devices. At present, Android devices on the APP less, only known AmpliTube support Android devices

Windows:Windows 7, Windows 8, Windows 8.1, Windows 10
